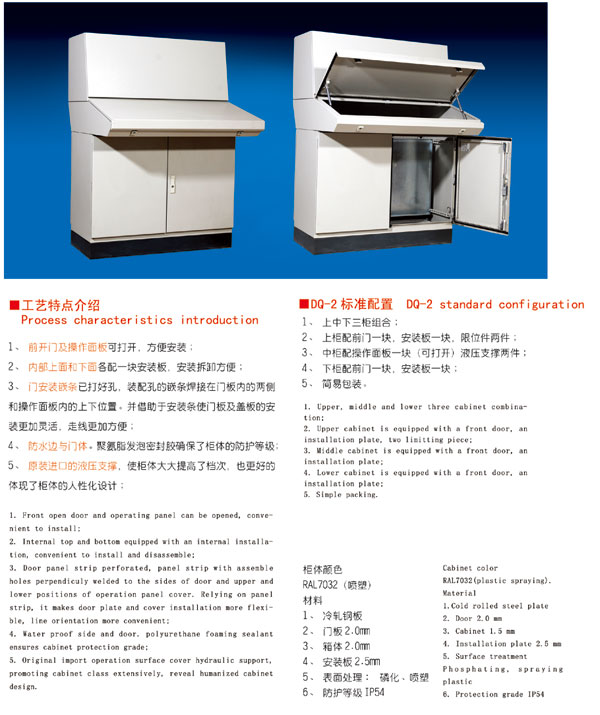

DQ-3分体式琴台柜

DQ-3分体式琴台柜
产品编号: 6252232316 产品名称: DQ-3分体式琴台柜
产品详细介绍:

“巴合曼”DQ-3分体式琴台柜工艺特点介绍
1、前开门及操作面板可打开,方便安装;
2、内部上面和下面各配一块安装板,安装拆卸方便;
3、门安装嵌条已打好孔,装配孔的嵌条焊接在门板内的两侧和操作面板内的上下位置。并借助于安装条使门板及盖板的安装更加灵活,走线更加方便;
4、防水边与门体。聚氨脂发泡密封胶确保了柜体的防护等级;
5、原装进口的液压支撑,使柜体大大提高了档次,也更好的体现了柜体的人性化设计;
DQ-3 Piano platform cabinet
1. Front open door and operating panel can be opened, convenient to install;
2. Internal top and bottom equipped with an internal installation, convenient to install and disassemble;
3. Door panel strip perforated, panel strip with assemble holes perpendiculy welded to the sides of door and upper and lower positions of operation panel cover. Relying on panel strip, it makes door plate and cover installation more flexible, line orientation more convenient;
4. Water proof side and door. polyurethane foaming sealant ensures cabinet protection grade;
5. Original import operation surface cover hydraulic support, promoting cabinet class extensively, reveal humanized cabinet design.
1、上中下三柜组合;
2、上柜配前门一块,安装板一块,限位件两件;
3、中柜配操作面板一块(可打开)液压支撑两件;
4、下柜配前门一块,安装板一块;
5、简易包装。柜体颜色RAL7032(喷塑)
1. Upper, middle and lower three cabinet combination;
2. Upper cabinet is equipped with a front door, an installation plate, two limitting piece;
3. Middle cabinet is equipped with a front door, an installation plate;
4. Lower cabinet is equipped with a front door, an installation plate;
5. Simple packing. Cabinet color RAL7032(plastic spraying).

材料
1、冷轧钢板
2、门板2.0mm
3、箱体2.0mm
4、安装板2.5mm
5、表面处理:  磷化、喷塑。
6、防护等级IP54 表面处理 磷化、喷塑
1. Material
Cold rolled steel plate
2. Door 2.0 mm
3. Cabinet 1.5 mm
4. Installation plate 2.5 mm 5. Surface treatment
Phosphating, spraying plastic
6. Protection grade IP54
